Reed Instruments

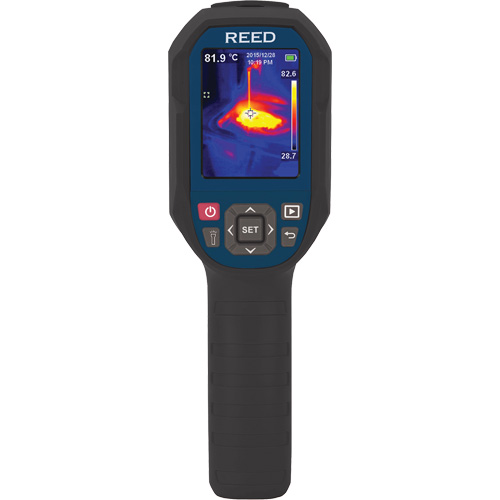

Thermal Imaging Camera, 160 x 120 pixels, -10° - 400°C (14° - 752°F), 50 mK

Model: ID031

Mfr. No.: R2165

  • Thermal Imaging Camera, 160 x 120 pixels, -10° - 400°C (14° - 752°F), 50 mK Superchem Industries

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$823.90 / Each

0 In Stock

Includes

  • Thermal Imaging Camera
  • USB Cable
  • 32GB Micro SD Card
  • Soft Carrying Case

Manufacturer's Warranty

  • 1 Year

Display Size

2.8"

Display Type

Built-in/Windows PC

Resolution

160 x 120 pixels

Thermal Sensitivity

50 mK

Temperature Range

-10° - 400°C (14° - 752°F)

Field Of View (FOV)

56 x 42°

Optimal Focal Distance

0.82' (0.25m)

Image Capture Frequency

9Hz

Detector Type

Uncooled microbolometer, Focal plane array (UFPA)

Spectral Range

8 to 14µm

Emissivity

Adjustable (0.01 to 0.99)

Digital Camera Resolution

640 x 480 pixels

  • Features a rugged IP65-rated double-molded housing and a 160 x 120 9Hz infrared sensor with 0.05°C thermal sensitivity
  • has the ability to display hot and cold spot temperatures on a 2.8" color LCD and allows a user to choose from 7 different color palettes
  • The included software allows a user to view and analyze data, and generate reports or projects in real-time on a PC
  • 2.8" color TFT display
  • Built-in LED flashlight
  • 7 colour palettes (Ironbow/Rainbow/Rainbow(HC)/Lava/Red-Hot/White-Hot/Black-Hot)
  • Intuitive on-screen measurement tools
  • 3 image modes (Thermal, Visual Image, Thermal Blending)
  • High and Low-temperature spot and alarm indicators
  • IP65 and 6.5' (2m) drop tested
  • Rechargeable Li-ion battery
  • Tripod mountable for continuous long-term monitoring
  • View, analyze stored data, and generate reports or projects in real-time
  • Low battery indication and auto shut-off
