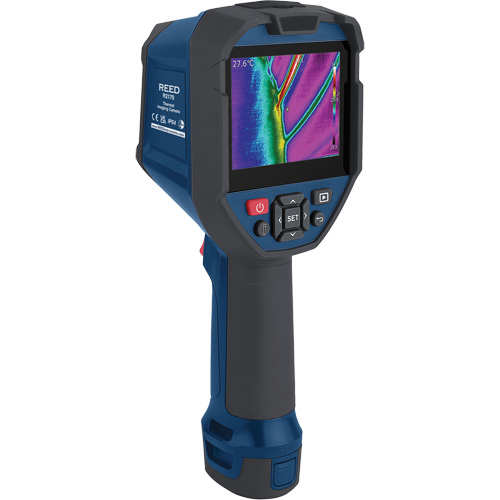

R2170 Thermal Imaging Camera, 640 x 480 pixels, 65 mK

Name: R2170 Thermal Imaging Camera, 640 x 480 pixels, 65 mK
Brand: Reed Instruments
SKU: IC923
Price: 1974.5 CAD
Availability: InStock

Model: IC923

Mfr. No.:Manufacturer Model No.: R2170

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Display Size: 3.5"
Display Type: Built-in
Resolution: 640 x 480 pixels
Thermal Sensitivity: 65 mK
Field Of View: 56 x 42°
Focal Length: 4 mm
Image Capture Frequency: 9 Hz
Temperature Range: -40 to 752°F (-40 to 400°C)
Accuracy: ±3.6°F (2°C) or ±2%
Spectral Range: 8 to 14 µm
Battery Life: Approx. 3.5 hours
Charge Time: Approx. 4 hours
Standard(s) Met: CE, UKCA, IP54, 6.6' (2 m) Drop Test

Features a 320 x 240 (76,800 pixels) infrared sensor that can detect temperatures between -40 and 752°F (-40 and 400°C)
The R2170 has the ability to display hot and cold spot temperatures on a 3.5" color LCD and allows a user to choose from 7 different color palettes
The included software allows a user to view and analyze data, and generate reports or projects in real-time on a PC
The included battery packs have been designed to be easily changed in the field, allowing for continuous work
Built-in dual LED flashlight
Intuitive on-screen measurement tools
4 image modes: thermal, visual image, picture-in-picture, fusion (thermal blending)
High and Low temperature spot and alarm indicators
Tripod mountable for continuous long-term monitoring
View, analyze stored data and generate reports or project in real-time
Low battery indication and auto shut off
Rechargeable Li-ion battery
4x digital zoom

Catalog Page for R2170 Thermal Imaging Camera, 640 x 480 pixels, 65 mK
