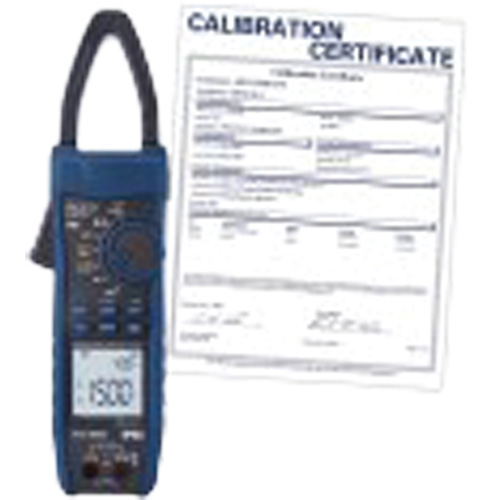

Professional Solar Clamp Meter with Traceable Certification, AC/DC Voltage, AC/DC Current

Name: Professional Solar Clamp Meter with Traceable Certification, AC/DC Voltage, AC/DC Current
Brand: Reed Instruments
SKU: ID652
Price: 686.4 CAD
Availability: InStock

Model: ID652

Mfr. No.:Manufacturer Model No.: R5075-NIST

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Specifications
Description

Includes

Thermocouple Wire Probe (Type K)
Thermocouple Adapter
Test Leads
Carrying Case
Batteries

Voltage Readings: AC/DC
Current Readings: AC/DC
Resistance Range: 999.9Ω, 9.999KΩ, 99.99KΩ
Capacitance Range: 100µF, 1000µF
Frequency Range: 5Hz to 999.9Hz
DC Power Range: 999.9kVA, 2500kVA
Temperature Range: -40 to 752°F (-40 to 400°C)
Jaw Opening: 1.4" (35mm)
Power Supply: (2) AA Batteries
Standard(s) Met: CE, ETL, ROHS, IP65
Country Of Origin: China

Measures AC/DC current and voltage, resistance, capacitance, frequency, and contact temperature
High-resolution 9,999-count backlit LCD display
Dual display allows simultaneous viewing of voltage and current measurements
True RMS voltage and current for accurate measurements
Expandable AC current measurement up to 3000A with the flexible current probe (R5065, sold separately)
Slim jaw design for easy access to cables in crowded combiner boxes, with the capacity to clamp around multiple cables
Ergonomically designed for a comfortable grip and can be used with protective gloves
DC power measurement capability with kVA readings
IP65-rated for reliable performance in dusty or damp outdoor environments, ideal for solar and wind power applications
Audible and visual polarity indicator to prevent accidental miswiring
Low Pass Filter (LPF) and inrush measurement capabilities for precise motor and HVAC testing
Min, Max, Average, Peak capturing and display hold
Diode test and continuity check functions
Low battery and over-range indicators
Cat. III 1500V, Cat. IV 600V safety rating
